CJPF86/NC,NSC-VFD 0.6/1kv耐火船用低压电力电缆

产品名称：CJPF86/NC,NSC-VFD 交联聚乙烯绝缘耐火船用低压变频电力电缆 0.6/1kV

XLPE Insulated Fire Resistant Shipboard Low Voltage VFD Power Cables 0.6/1kV

产品应用：交联聚乙烯绝缘低烟无囱船用变频电力电缆适用于各种河海船舶及海上石油平台等水上建筑中对屏蔽性能要求严格的动力线路及输配电线路，尤其适用于变频控制传动系统中做供电或连接电缆。

The shipboard VFD power cables are suitable to eachkind of river sea ships and the sea petroleum platformand so on in the aquatic construction and loses thedistribution line to the shielding properties request strictpower circuit,especially is suitable in the frequencyconversion control transmission system makes the powersupply or the tie cable.

执行标准：IEC60092-350，IEC60092-353，IEC60092-360，IEEE1580，IEC60228，IEC60332-1-2，IEC60332-3-22，IEC61034，IEC60754，IEC60684-2。

产品标识：厂名、型号、额定电压线芯标记:颜色色标或打印数字

Product marking:factory name,type,rated voltageCore marking:color marking or printed numbers

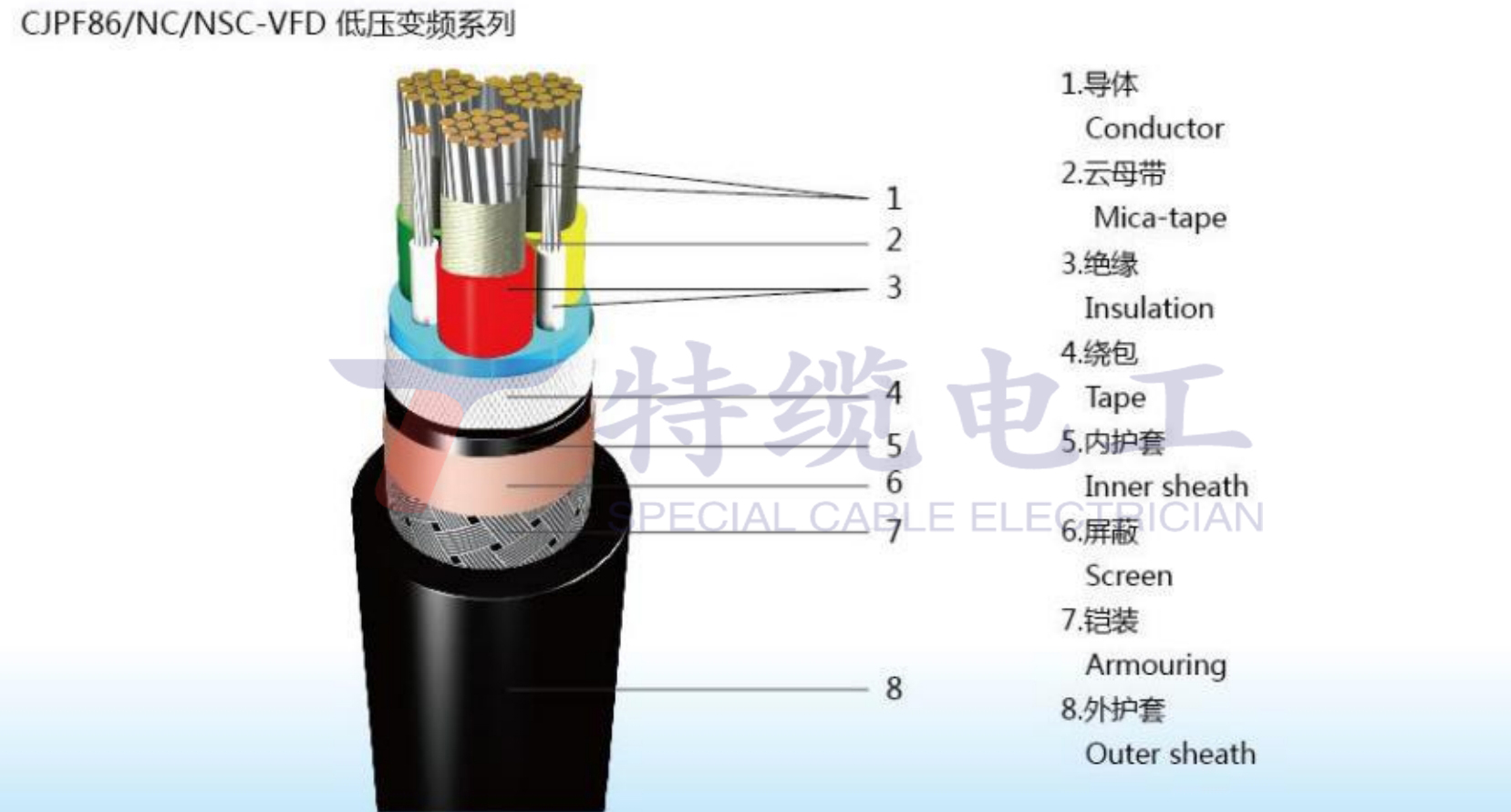

产品结构图：

CJ86/NSC,NC-VFD  交联聚乙烯绝缘镀锡铜丝编织铠装聚烯烃外护套低烟无卤耐火阻燃船舶变频器用电力电缆，NC或NSC型.

XLPE insulation tinned copper wire braided polyolefin outer sheath low-smoke halogen-free fire resistant shipboard VFD power cbale ,type NC or NSC

CJ85/NSC,NC-VFD 交联聚乙烯绝缘镀锡铜丝编织铠装交联聚烯烃外护套无卤耐火阻燃船舶变频器用电力电缆，NC或NSC型.

XLPE insulation tinned copper wire braided corss-linked polyolefin outer sheath low-smokehalogen-free fire resistant shipboard VFD power cbale ,type NC or NSC

CJPF86/NSC,NC-VFD 交联聚乙烯绝缘镀锡铜丝编织铠装交联聚烯烃外护套低烟无卤耐火阻燃船舶变频器用电力电缆，NC或NSC型.

XLPE insulation polyolefin inner sheath tinned copper wire braided polyolefin outer sheathlow-smoke halogen-free fire resistant shipboard VFD power cbale , NC or NSC

CJPJ85/NSC,NC-VFD 交联聚乙烯绝缘聚烯烃内护套镀锡铜丝编织铠装聚烯烃外护套低烟无卤耐火阻燃船舶变频器用电力电缆，NC或NSC型.

XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided cross-linked polyolefinouter sheath low-smoke halogen-free fire resistant shipboard VFD power cbale ,type NC or NSC

注:NA与NSA、NC与NSC产品结构、性能完全一致，推荐使用NSA型、NSC型，

Note : Cables of NA and NsA type, NC and Nsc type have the same structure and property, NsA and NsC type are recommended

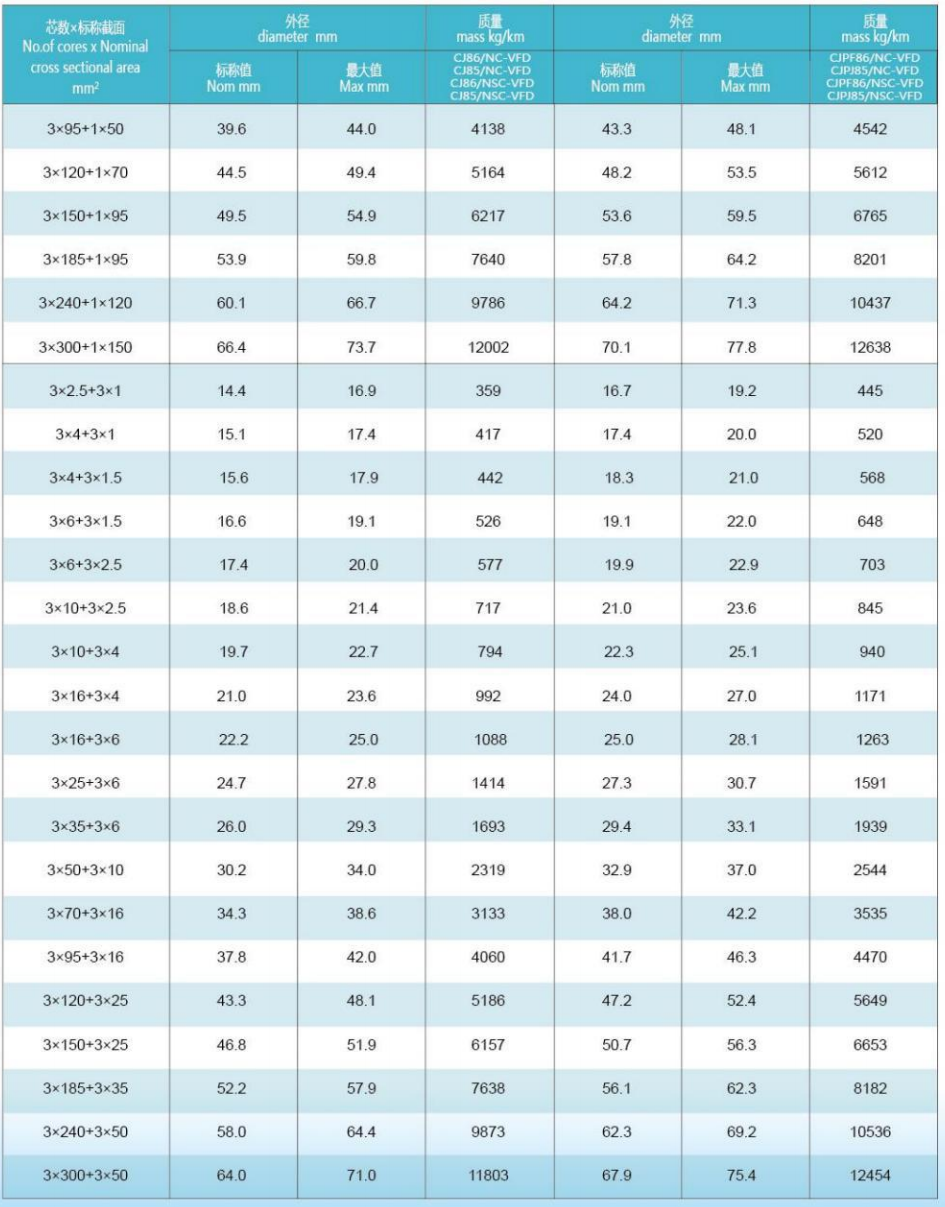

交联聚乙烯绝缘耐火船用低压变频电力电缆 0.6/1kv 90℃

XLPE Insualted Fire Resistant Shipboard Low Voltage VFD Power Cables 0.6/1kV 90°C

CI86/NC-VFD,CI85/NC-VFD,CI86/NSC-VFD,CJ85/NSC-VFD,CJPF86/NC-VFD,CIPJ85/NC-VFD,CIPF86/NSC-VFD,CIPJ85/NSC-VFD
